6.6 Color selection window

    Visual configuration of the event graph window is done through the Color selection window, as shown below:

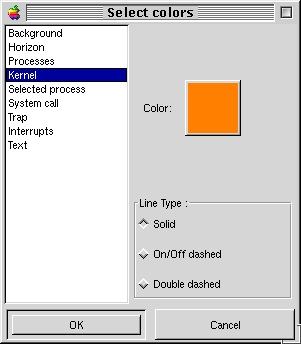

Figure 1: The color selection window

    The list on the left displays all configurable event graph components. Upon selection, the selected element's color and line type values will be updated on the right hand side. Clicking the color button will display the standard GTK+ color selection window, allowing you to select the color you wish to use for the configured element. The element's line type can also be changed, by selecting one of the following radio buttons:

    Each of these choices corresponds to the GTK+ standard available line types.
